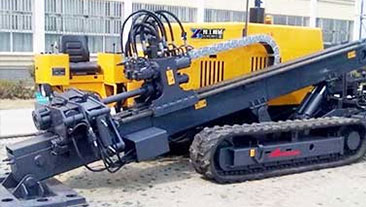

HDD Rig Machine

Horizontal Directional Drilling Machine

  • Rated Power: 2200W
  • Max pull/thrust force: 1000kN
  • Engine Brand：: Cummins
Horizontal directional drilling machine does not dig the surface of the ground and is suitable for urban construction and laying a variety of underground public facilities (pipelines, cables, etc.). It is widely used in the laying of flexible pipelines for water supply, electricity, telecommunications, natural gas, coal gas, oil, etc.
Email: supports@yugongmachine.com
Inquire Now
Product Description
Working principle: Position the drill bit equipped with a guidance device to the drilling point, turn on the power to start the transmission device to make the drill bit rotate and move forward at a specified angle and speed, while the coolant removes the drill cuttings to form a hole of corresponding specifications. The mobile mechanism can complete multi-point horizontal or inclined drilling work. The development trend of drilling rigs in the future will be high degree of automation, adaptability to hard rock operations, built-in anchoring system, automatic stacking of drill rods, anti-electric shock system and other automated operation functions, ultra-deep guidance monitoring, and a wide range of applications.
Inquire Now

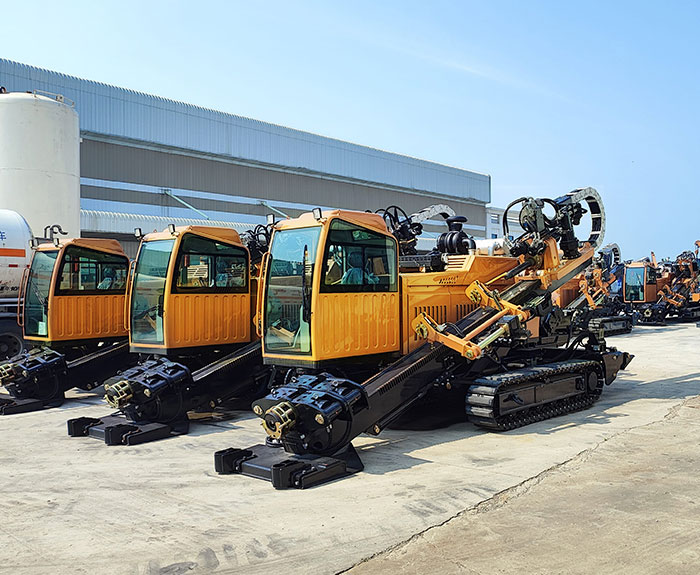

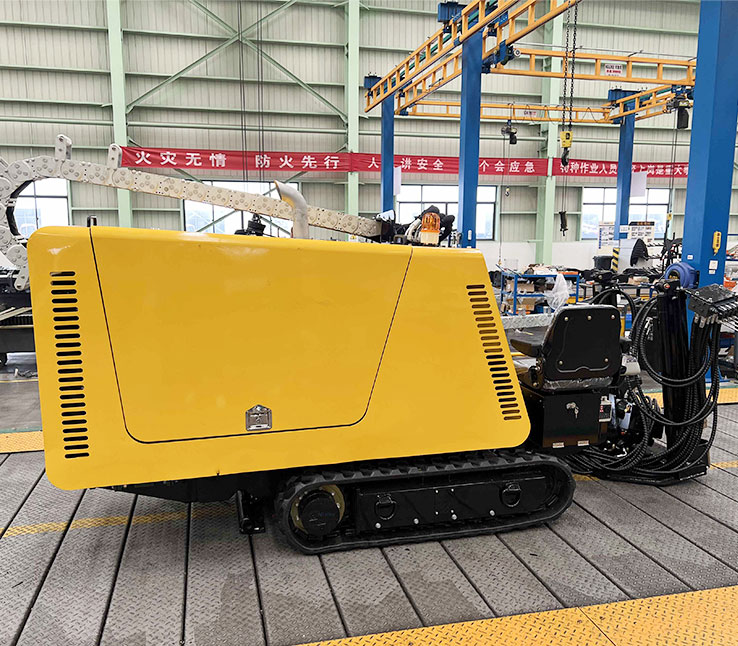

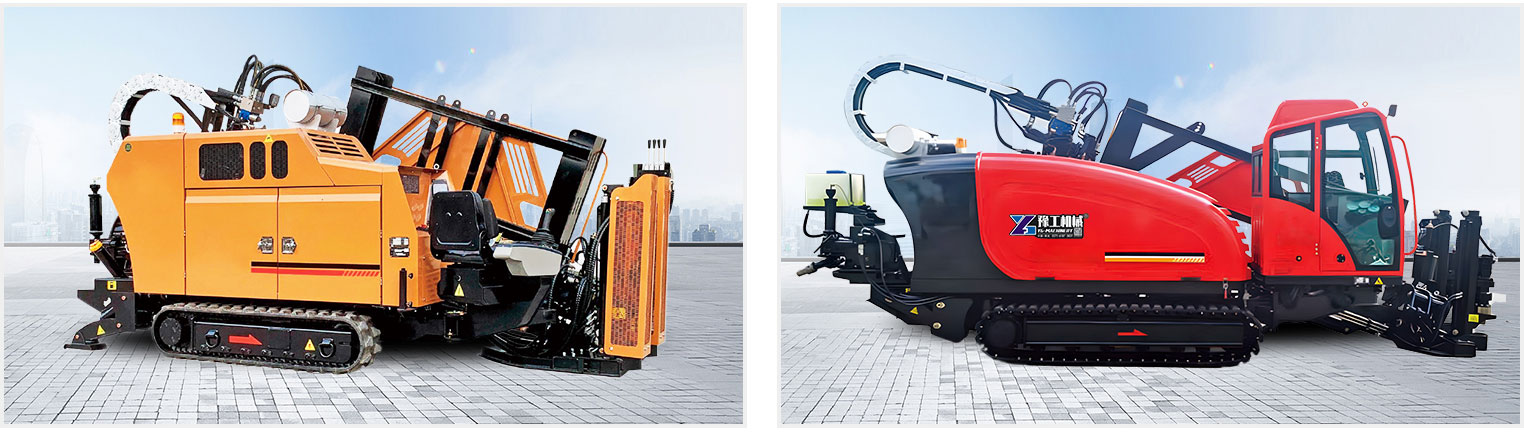

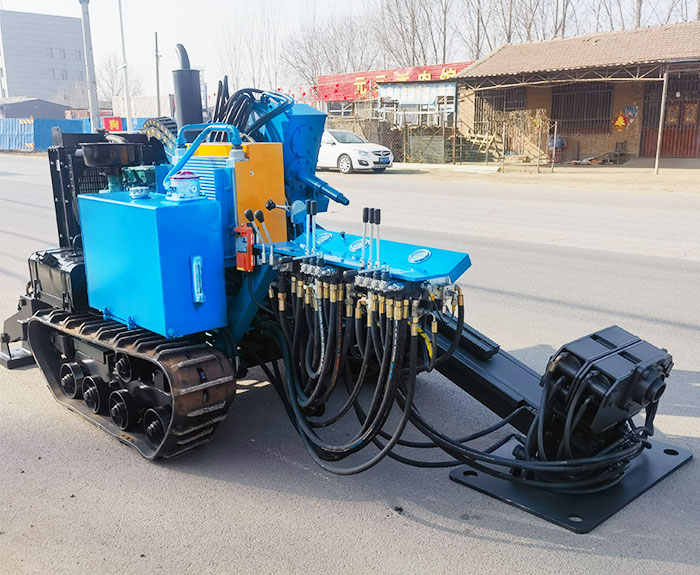

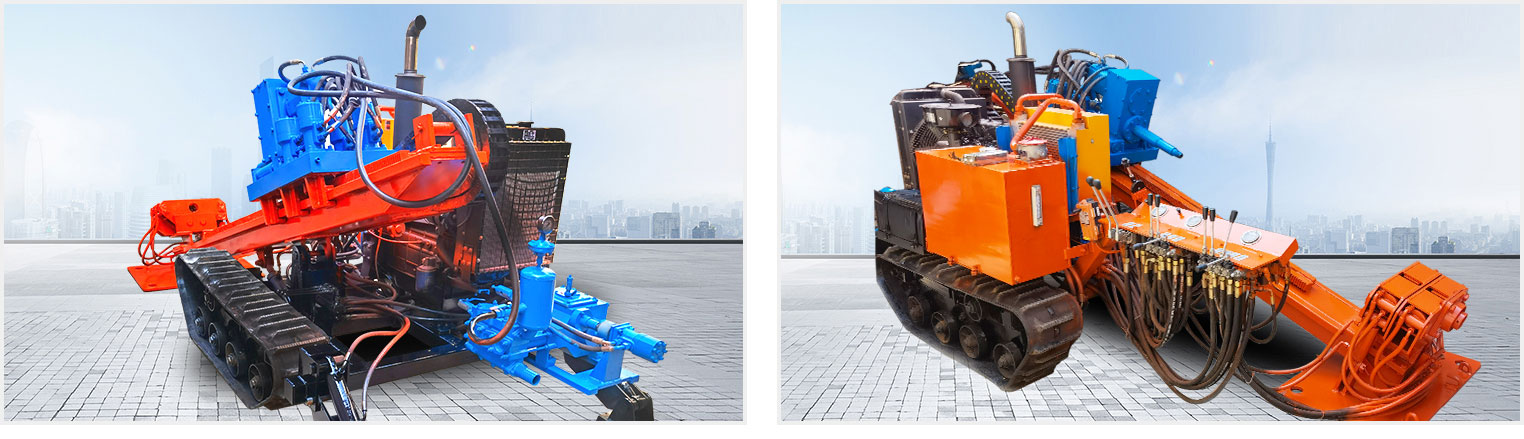

Various Models to Choose
HDD-Rig-Machine1
HDD-Rig-Machine2
Parameters
ModelYG130FYG450FYG1000F
Rated power(Kw/r/min)81/2200179/2200242/2100
Max pull/thrust force (KN)135450/7001000/1300
Max pull/thrust speed(m/min)405545
Torque(N.m)32001900040000
Max spindle speed(r/min)230170120
Max pressure(Mpa)4810
Diameter × Length (mm×m )φ52x1.8φ83x3φ114/φ102x6


Product Details
product-details
details

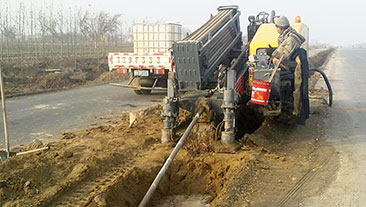

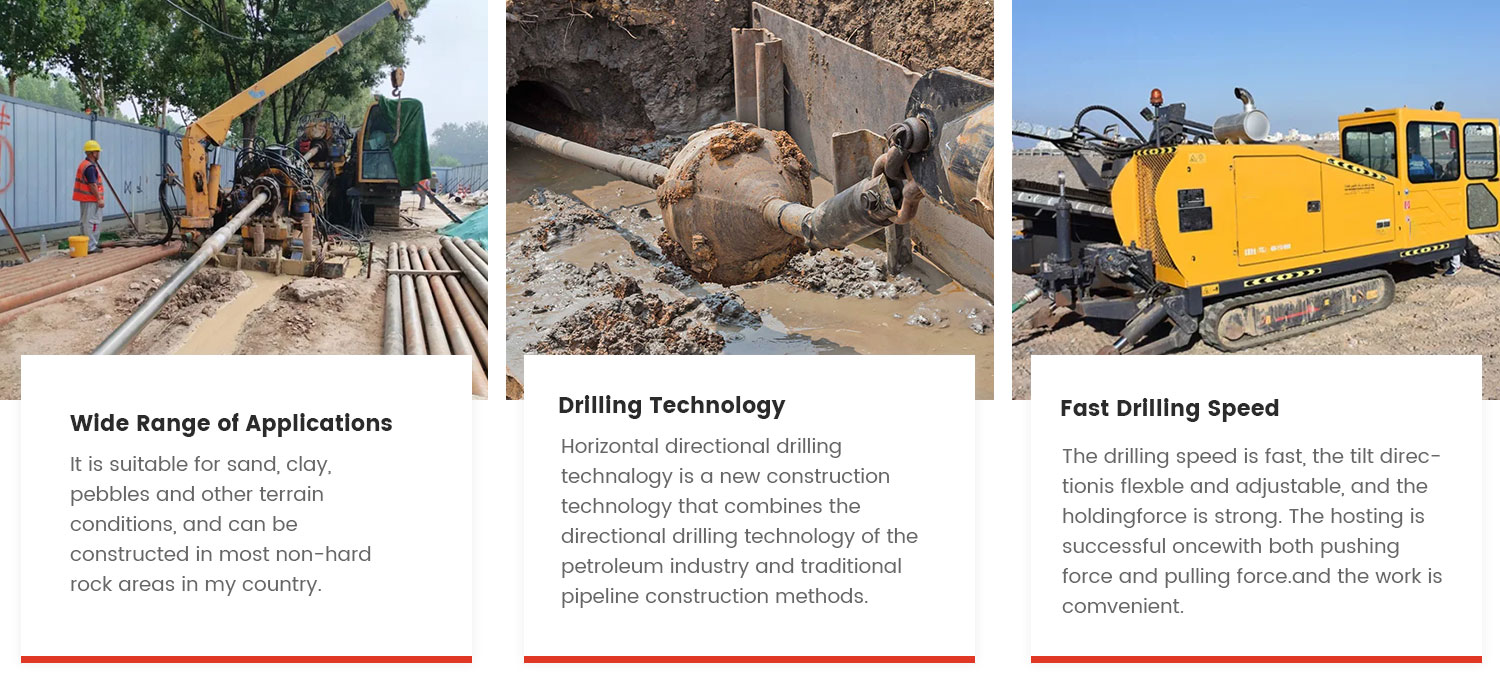

Widely Applicable

Easily handle various complex terrains

applicable
applicable


HDD Rig Machine Advantages
  • 01
    The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
  • 02
    Humanized-design worktable can rotate within 60°, with a wider view range, and high-quality seat that can be moved forward /backward is comfortable for operator.
  • 03
    Europe-American style surface, and elegant appearance, fully embody humanist designing idea. And it can be opened overall for flexible operation & daily convenient maintenance.
  • 04
    Main assembly parts adopt components from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.

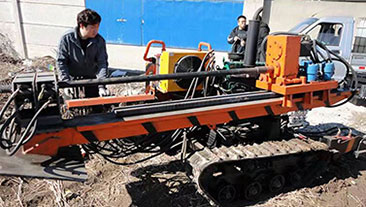

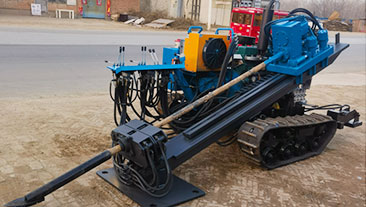

Customer Real Case
Top China drilling rig manufacturer - Import products from qualified suppliers in China, same quality, only factory price. Get real-time quote now! Our skilled and professional sales team will help you find the right product you need! Advanced technology. Factory direct sales. Quality assurance. 24 Hour Customer Service. Welcome to contact us for a free quote!

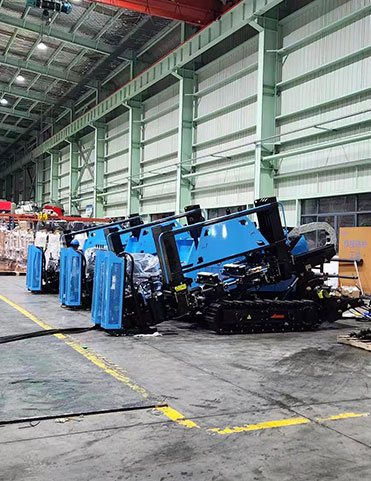

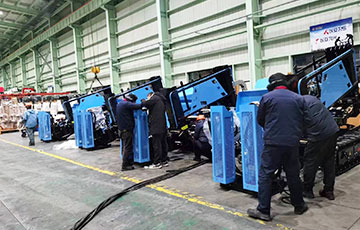

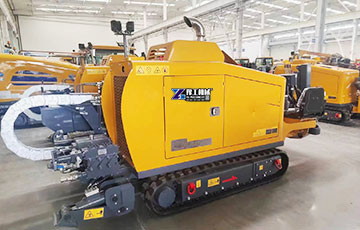

Factory Strength
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development,production and sales of drilling rig equipments. We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
Top China HDD Rig - Import products from qualified suppliers in China, same quality, only factory price. Get real-time quote now! Our skilled and professional sales team will help you find the right product you need! Advanced technology. Factory direct sales. Quality assurance. Welcome to contact us for a free quote!
